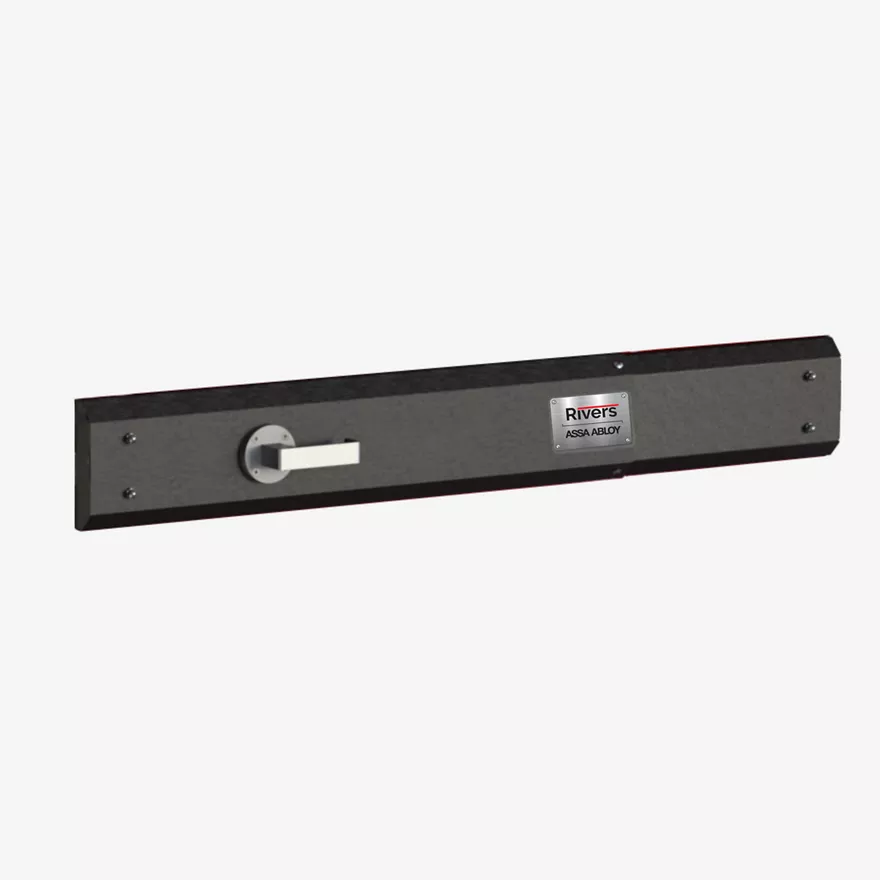

Model D Two-point Horizontal Lock

• Locking Points: Two-point high-security locking system
• Versatile Mounting: Horizontally installed on solid core doors. Vertical installation option available.
• Heavy-Duty Bars: Two 32mm × 10mm zinc-plated locking bars with 90mm total extension
• Adjustable Fit: Standard Model D suits door widths from 760mm to 960mm
• Extended Range: Custom options available for wider, narrower, or special applications

• Standard: Powder coated Aztek Black Ripple
• Other colours are available upon request

Ideal for any application where maximum security is required:

• Financial institutions, schools, and government buildings
• Communication huts, shopping centres, and council amenities
• Cash rooms, computer rooms, warehouses, and record storage rooms
• Retail outlets, rear entry doors, and fire exits

For best protection, pair with Defender^® Series Doors (door and frame assembly)

• Internal Lever Handle: Complies with the Building Code of Australia for emergency egress applications
• Schools Facilities Standards: Certified under Section SS455 Door Hardware
• Tested Performance: Achieved Scale 7 rating in Australian Standard AS4145.2

The Model D locking bars are surface-mounted to the inside of solid core door:

• On open-out doors, the lock is secured with nut plates and threaded rods, with the locking bars extending through slots in the door jamb.
• On open-in doors, coach bolts secure the lock to the door leaf, while nut plates and threaded rods hold the locking bar keepers on the inside of the door frame.
